Facilities

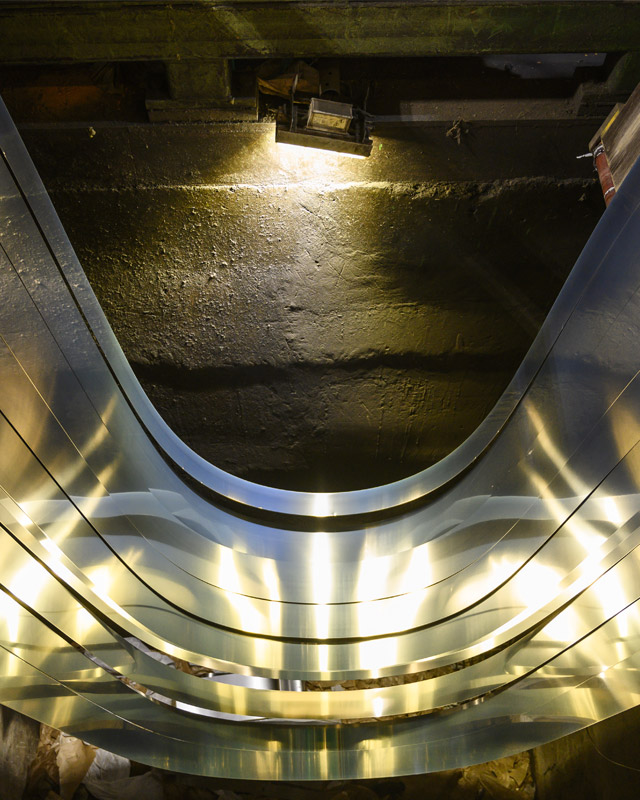

Processing Capabilities
| DESCRIPTION | MUMBAI | GURGAON | CHENNAI | VADODARA |
|---|---|---|---|---|
| Capacity (MT / Month) | 7000 | 7000 | 7000 | 4500 |
| Make | DHIM, Korea | FIMI, Italy | IDH, Korea | TCSF |
| Minimum input Width (mm) | 400 – 1550 | 600 – 1550 | 400-1600 | 600 – 1650 |
| Thickness (mm) | 0.3 – 3.0 | 0.3 – 3.0 | 0.3 – 3.0 | 0.70 – 6.0 |
| Maximum Coil Weight (MT) | 35 | 25 | 22 | 25 |
| Coil Inner Diameter (ID) (mm) | 508 & 610 | 508 & 610 | 508 & 610 | 508 & 610 |
| Coil Outer Diameter (OD) (mm) | 800 – 2200 | 900 – 2000 | 800 – 2200 | 800 – 2000 |
| Minimum Slit Coil Width (mm) | 50 | 50 | 31 | 31 |

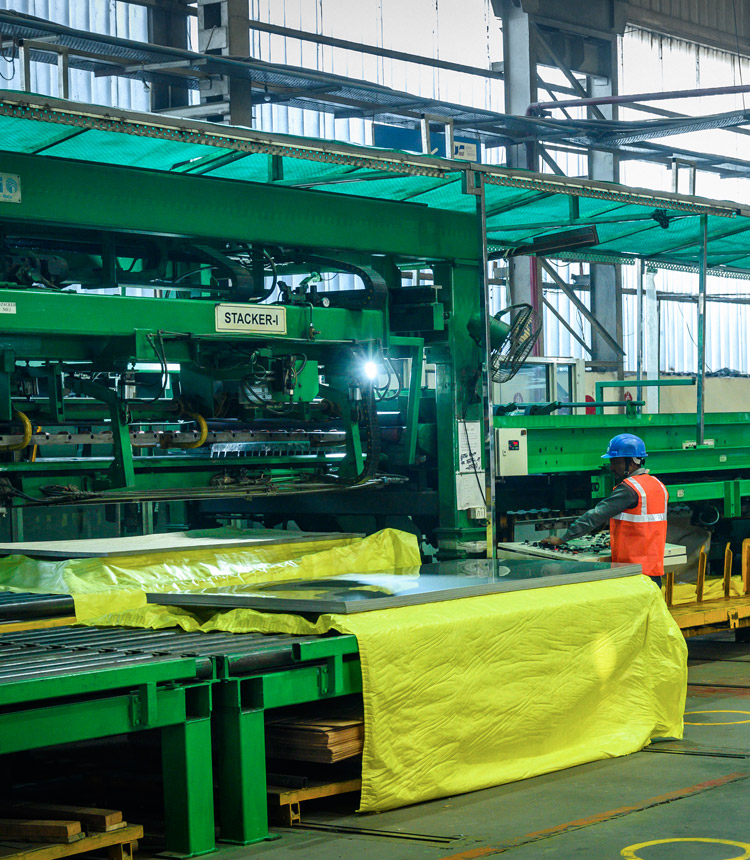

Processing Capabilities
| DESCRIPTION | MUMBAI UNIT | GURGAON UNIT |
|---|---|---|
| Capacity (MT / Month) | 5000 | 4700 |
| Make | DHIM, Korea | FIMI, Italy |
| Minimum input Width (mm) | 400 – 1550 | 600 – 1550 |
| Thickness (mm) | 0.3 – 3.0 | 0.3 – 3.0 |
| Coil Weight (MT) | 35 max | 20 max |
| Coil Inner Diameter (ID) (mm) | 508 & 610 | 508 & 610 |
| Coil Outer Diameter (OD) (mm) | 800 – 2200 | 900 – 2000 |
| Sheet Length (mm) | 400 – 6000 | 600 – 6000 |

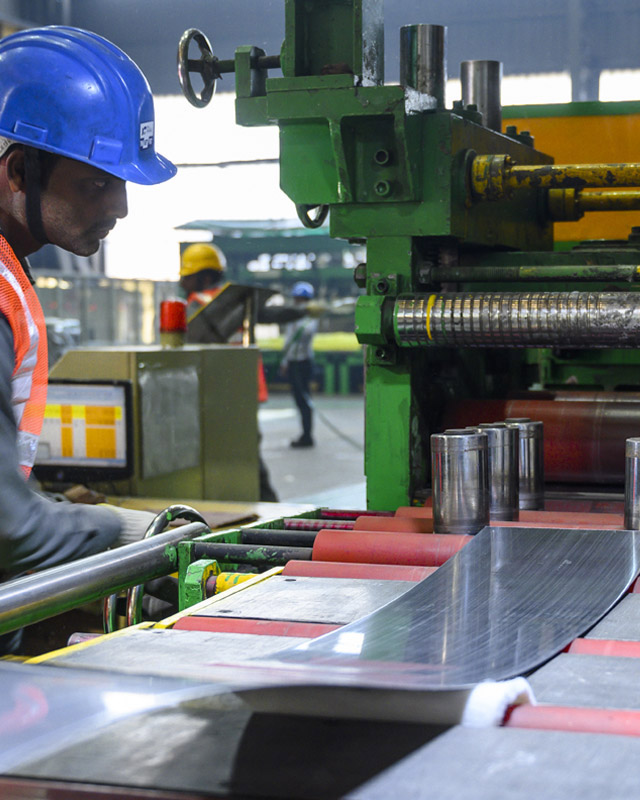

Processing Capabilities
| DESCRIPTION | MUMBAI UNIT | GURGAON UNIT | CHENNAI UNIT |
|---|---|---|---|
| Capacity (MT / Month) | 700 | 700 | 700 |
| Make | Kingjime | Kingjime | Arena |
| Minimum input Width (mm) | 50 – 585 | 50 – 585 | 50 – 585 |
| Thickness (mm) | 0.3 – 3.0 | 0.3 – 3.0 | 0.3 – 3.0 |
| Coil Weight (MT) | 5.00 | 5.00 | 4.00 |
| Coil Inner Diameter (ID) (mm) | 508 | 508 | 508 |
| Sheet Length (mm) | 100 -4000 | 100 -4000 | 100 -4000 |
Processing Capabilities
| DESCRIPTION | GURGAON |
|---|---|
| Capacity (MT / Month) | 400 |
| Make | EMEAS, Italy |
| Width (mm) | 200 – 1600 |
| Thickness (mm) | 0.3 – 4.0 |
| Sheet Length (mm) | 500 – 4000 |

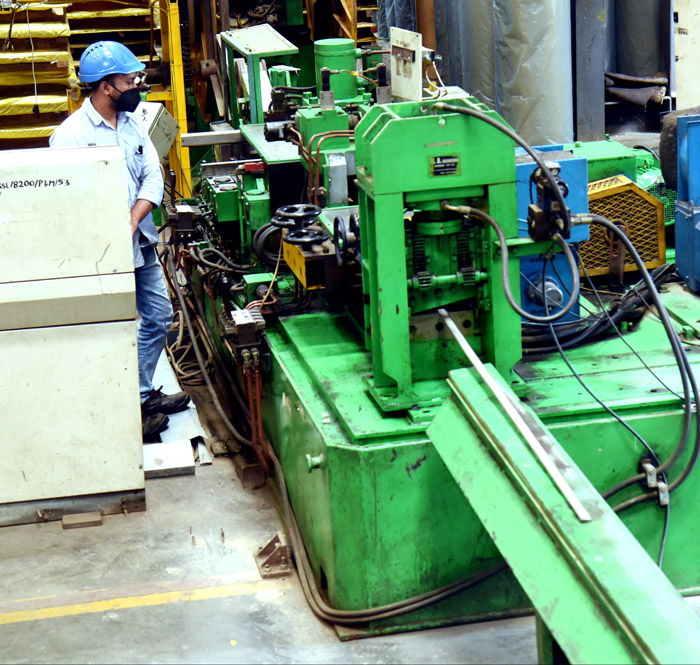

Processing Capabilities
| DESCRIPTION | MUMBAI UNIT |
|---|---|
| Make | Laminto Italy |
| Width (mm) | 30 – 60 |
| Thickness (mm) | 3.0 – 6.0 |
| Output Length Range (mm) | 2000 – 5000 |
| Input Coil Wt (MT) | 2 |

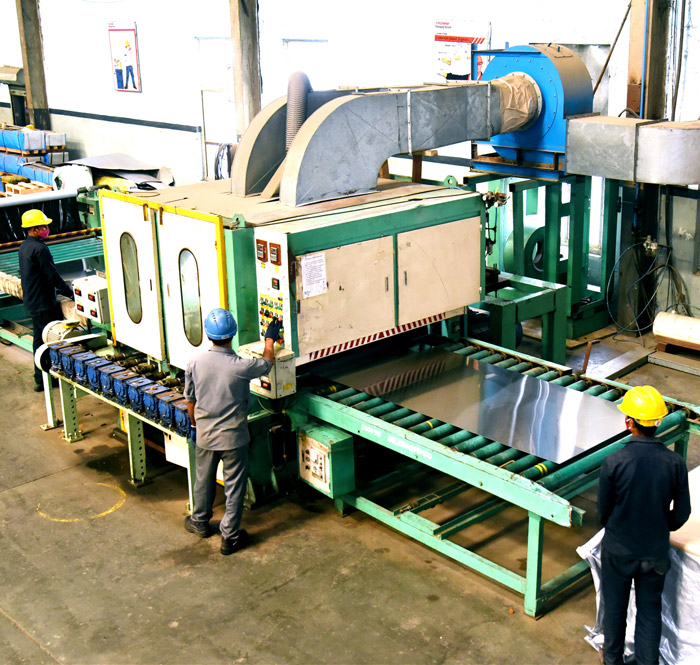

Processing Capabilities
| DESCRIPTION | MUMBAI UNIT |
|---|---|
| Capacity (MT / Month) | 250 |
| Input Finish | 2B |
| Input Width (mm) | 500-1550 |
| Thickness (mm) | 0.8 -1.5 |
| Input Length (mm) | 700 – 4000 |
| No. of Belts | 2 |

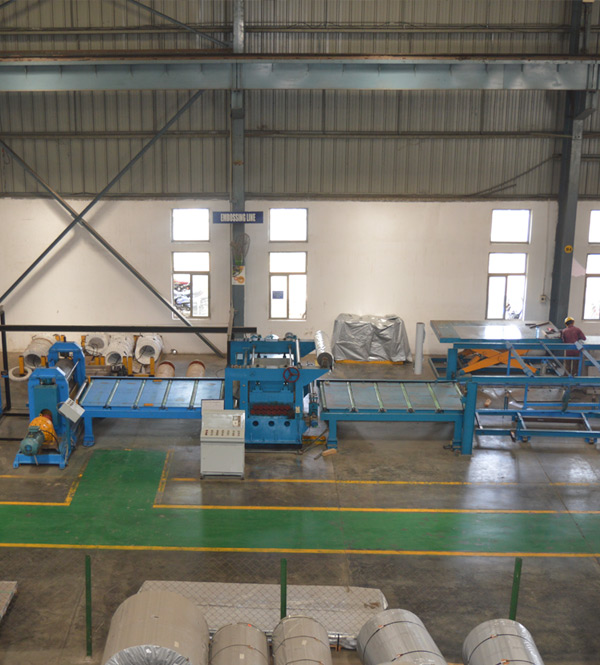

Processing Capabilities
| DESCRIPTION | VADODARA |
|---|---|
| Capacity (MT / Month) | 500 |
| Input Finish | 2B |
| Thickness (mm) | 0.5 – 2.0 |
| Input Width (mm) | 600 – 1550 |
| Input Length (mm) | 600 – 3500 |
| Design | Chequered plates |
| Tensile Strength | 450-950 N/mm2 |

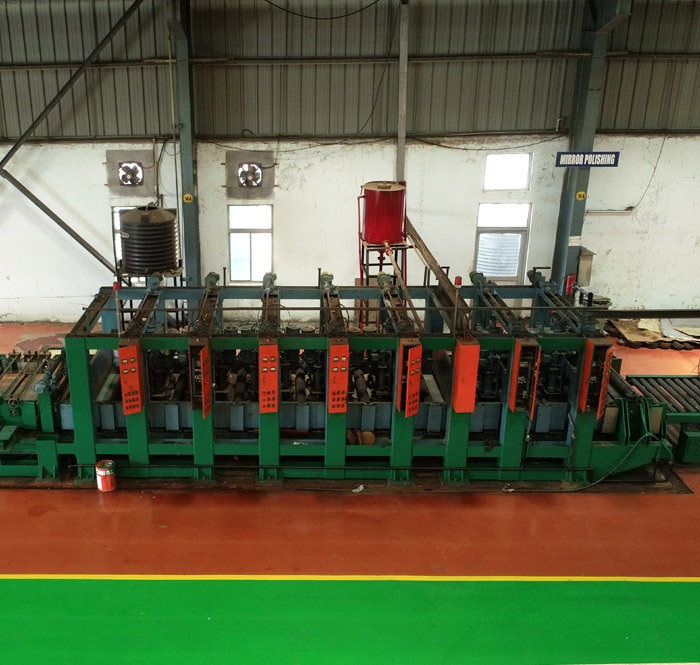

Processing Capabilities
| DESCRIPTION | VADODRA |
|---|---|
| Capacity (MT / Month) | 60 |
| Input Finish | 2B |
| Input Width (mm) | 550 – 1250 |
| Thickness (mm) | 0.3 – 3.0 |
| No. of Heads | 56 |
| Input Length (mm) | 2000 – 3000 |
*Both side mirror finish available

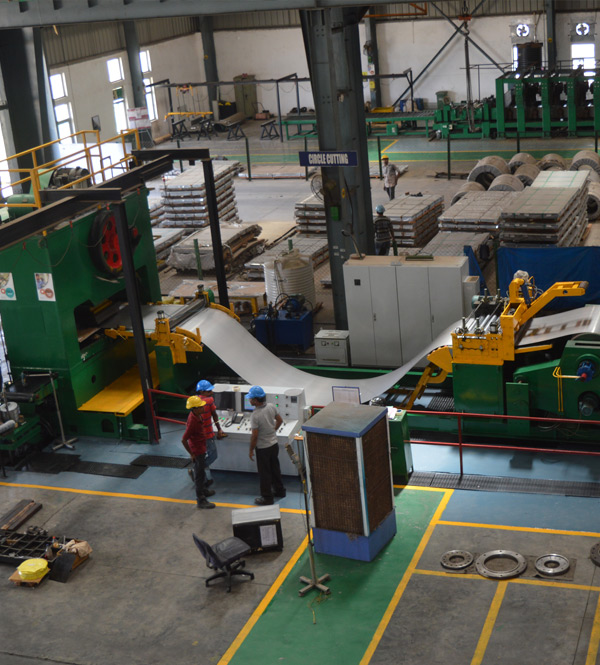

Processing Capabilities
| DESCRIPTION | VADODRA |
|---|---|
| Capacity (MT / Month) | 300 |
| Make | Jinan Sang |
| Width (mm) | 600 – 1300 |
| Thickness (mm) | 0.4 – 1.5 |
| Circle Dia Range (mm) | 100 – 600 |
| Input Coil Wt (MT) | 10.0 |
| Space Between Circles | 2 – 3 mm |
